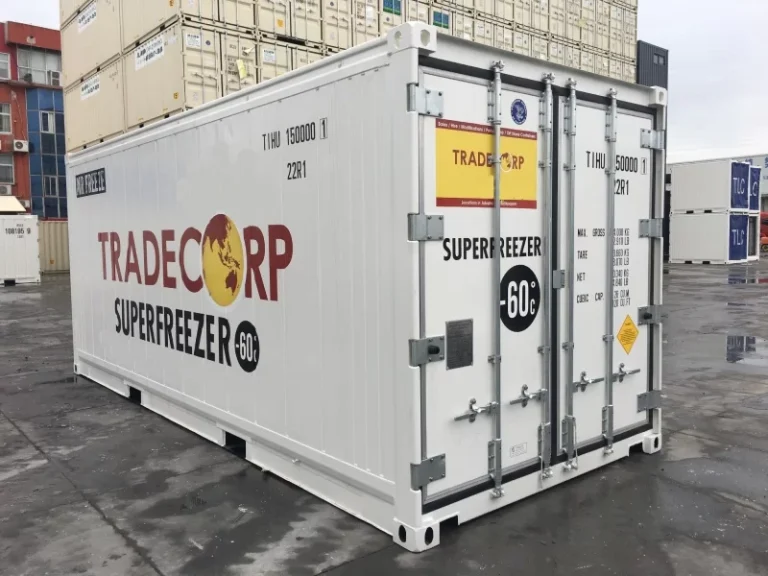

20-foot Super Freezer Container – Medical-grade cooling technology
When temperatures below -40°C are no longer sufficient, the world of super freezing begins :
The 20ft Super Freezer Container is designed for precise ultra-low temperature freezing down to -70°C – thus offering a reliable solution for critical applications in the pharmaceutical industry, biotechnology, research, and high-value logistics . 20ft Super Freezer Container
Utilizing state-of-the-art cooling technology, it meets the most demanding storage and transport requirements for temperature-sensitive goods with a consistent performance profile – even under extreme conditions. 20-foot Super Freezer Container
Technical specifications
| feature | Value |
|---|---|
| External dimensions | 6.06 m × 2.44 m × 2.59 m |
| Internal volume | approx. 26 m³ |
| Tare (empty weight) | 3,660 kg |
| Maximum payload | 20,340 kg |
| Max. total weight (Large) | 24,000 kg |
| Cooling capacity | down to -70 °C (constant) |
| Energy supply | Three-phase, 380–460 V |
Design & Cooling Technology
This container is equipped with a powerful Thermo King Super Freezer unit – designed for consistent, energy-efficient cooling even at outside temperatures above 40°C.
Key features:
- Ultralow temperature unit : Stable cooling down to -70 °C , suitable for vaccines, cell cultures, plasma, CRISPR elements or biochemically sensitive goods.
- Thermo King Engine : Modern unit with optimized energy efficiency and reduced fluctuation range – ideal for pharmaceutical transport chains.
- High-density insulating panels : Minimize heat gain and ensure precise climate stability for days on end .
- T-Bar aluminum base : Optimizes airflow when the surface is loaded and withstands high static pressure.
- Low-profile fasteners : For fast, ergonomic operation with simultaneous safety locking.
- Rubber seals on double doors : Reduce air leakage and prevent ice formation on locking mechanisms.
- Standardized Corner Castings : Full stackability and integration into intermodal logistics chains are guaranteed.
- Forklift pockets : Integrated on both sides for internal movements and repositioning.
Areas of application with the highest requirements
This container was n’t built for simple frozen goods , but for applications requiring zero tolerance for temperature fluctuations . Industries that rely on uncompromising cooling performance benefit directly:
Pharmaceuticals & Biotechnology
- mRNA vaccines
- Antibody preparations
- Cooling of diagnostic material
- Cell therapy products
Research institutions & laboratories
- Sample storage below -70 °C
- Long-term stabilization of biological substances
- Field laboratories in remote areas
High-quality frozen food for export
- Export of high-quality seafood, squid, salmon roe , etc.
- Specialty chemicals, enzymes, or heat-sensitive active ingredients
Security & Backup Systems
- Temporary cooling stations for emergencies
- Backup systems in case of cold storage failures
- Storage of backup cargo during the transport process: 20-foot super freezer container
Functional advantages in operational use
- Thermal stability at a scientific level:
Temperature fluctuations below 0.5 °C even when the door is opened under controlled conditions. - Maximum payload with minimal space requirements.
Ideal for airports, data centers, and distribution centers with limited space. - Quick commissioning
. Compatible with any standard 3-phase power supply – no modifications required. - Multimodal deployment:
truck, rail, container storage, offshore – fully ISO-certified and CSC-compliant
Additional Information
| Condition | New – Factory Fresh, Grade A Refurbished, As-Is Condition |
|---|
